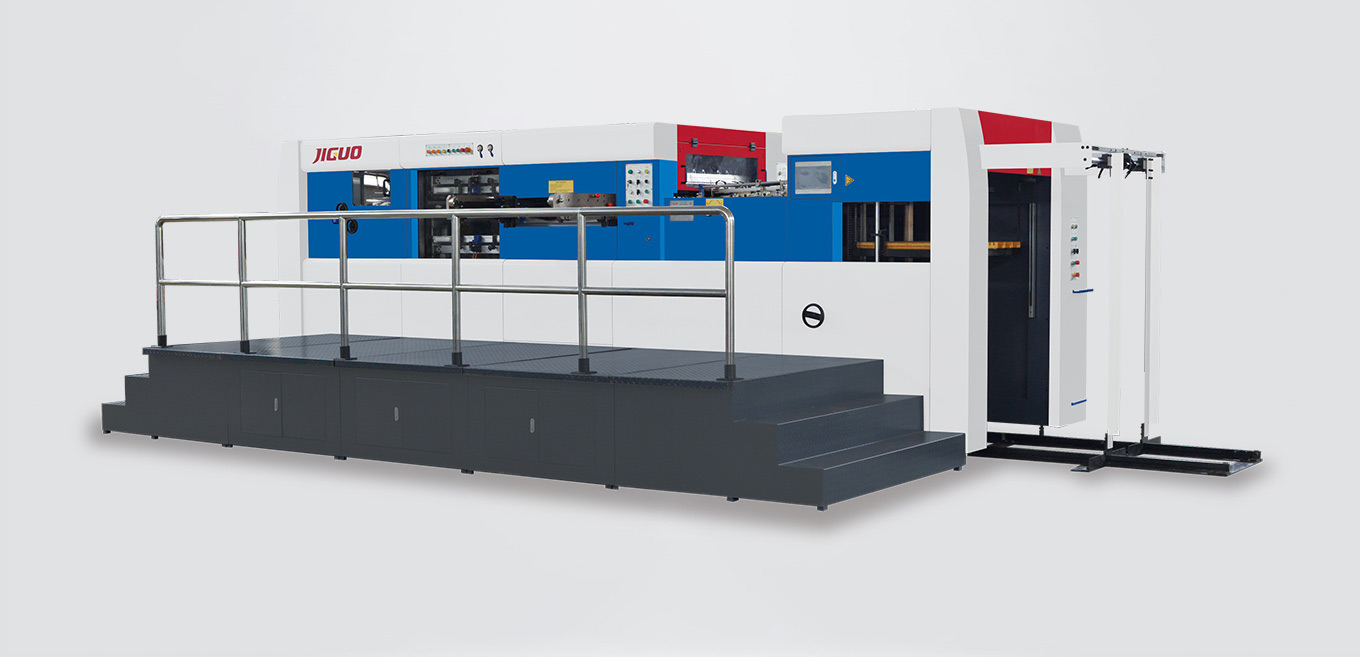

MYP-880Fast

Automatic Die-cutting & Stripping Machine

MYP-880Fast

Description


The Fast series products belong to the high-speed series of machines, and their excellent performance can reach a speed of 10000 sheets/hour, which is faster, accurate, and stable than traditional die-cutting machines. Adopting a new electrical control system, German main chain, Swedish bearings, all parts and materials are processed using imported European machining centers. It ensures the performance and stability of the machine at high operating speeds. This machine is equipped with a series of high-end features of the JIGUO brand: automatic locking plate, automatic front lay adjustment, automatic non-stop auxiliary paper receiving roller shutter, and special oil temperature refrigeration technology to ensure the lubrication effect of the movement. Fully meet the die-cutting needs of high-end customers. Suitable for various high-end and exquisite gift box packaging products, such as wine boxes, cigarette boxes, medicine boxes, cosmetics boxes, gift boxes, and so on.

Specifications


ModelMYP-880 Fast
Max. Paper Size880x610mm
Min. Paper Size320x240mm
Max. Diecutting Size860x590mm
Max. Running Speed10000s/h
Die-cutting Precision±0.1mm
Max. Pressure300T
Sheet ThicknessCardboard:0.1~3mm  Corrugated paper≤4mm
Min. Gripper Edge7mm
Max. Feeding Pile Height1400mm
Max. Delivery Pile Height1100mm
Total Power15kw
Net Weight14T
Overall Dimension6600x3500x2000mm
Air Requirements(Buyer provide)0.8Mpa,>0.36m³/min

Parts Description
