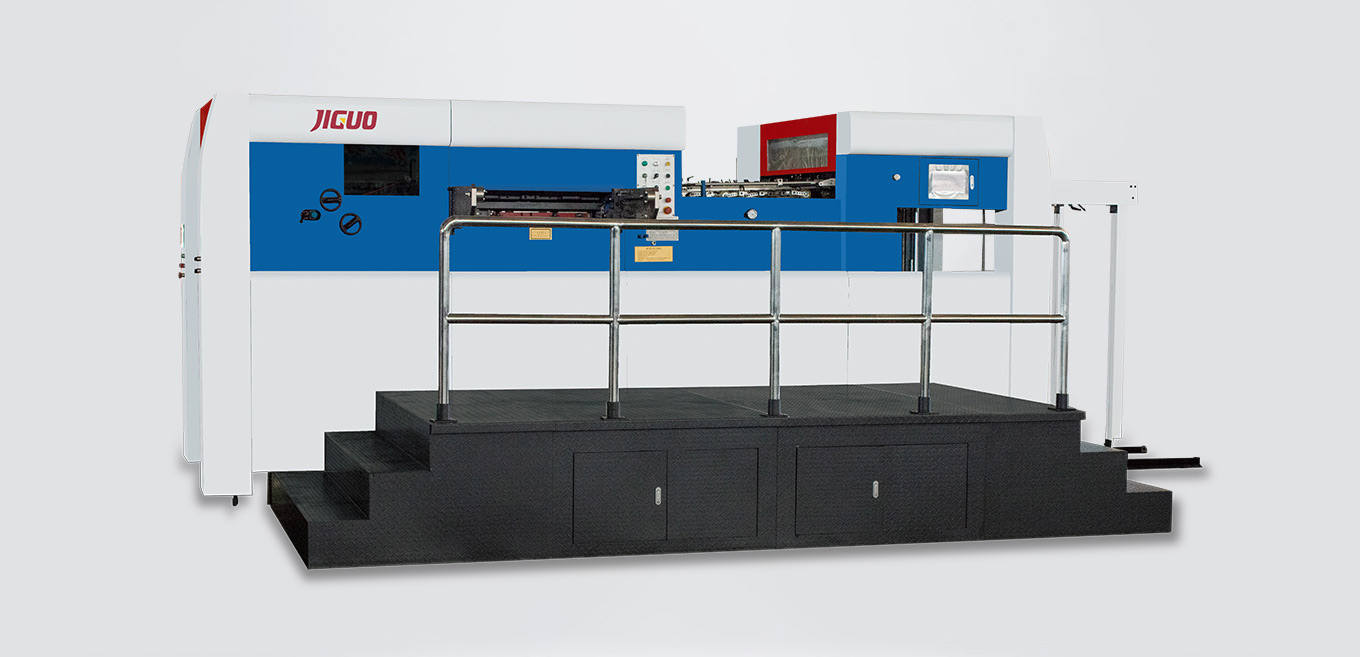

MY-880Fast
Automatic Die-cutting & Creasing Machine （High Speed）
Description
Speed Over 10000 Sheets/Hour
It proves JIGUO machine quality is excellent.
It proves that we really use expensive nice materials.
Specifications
| Model | MY-880 Fast |
| Max. Paper Size | 880x610mm |
| Min. Paper Size | 320x240mm |
| Max. Diecutting Size | 860x590mm |
| Max. Cutting Speed | 10000s/h |
| Die-cutting Precision | ±0.1mm |
| Max. Pressure | 250T |
| Sheet Thickness | 0.1~4mm |
| Min. Gripper Edge | 7mm |
| Max. Feeding Pile Height | 1400mm |
| Max. Delivery Pile Height | 1100mm |
| Total Power | 15kw |
| Net Weight | 11T |

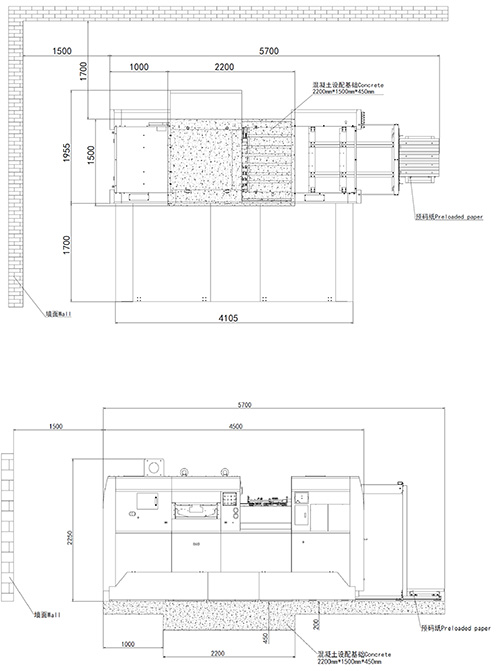

| Overall Dimension | 5600x3500x2000mm |
| Air Requirements（Buyer provide) | 0.8Mpa,＞0.36m3/min |
