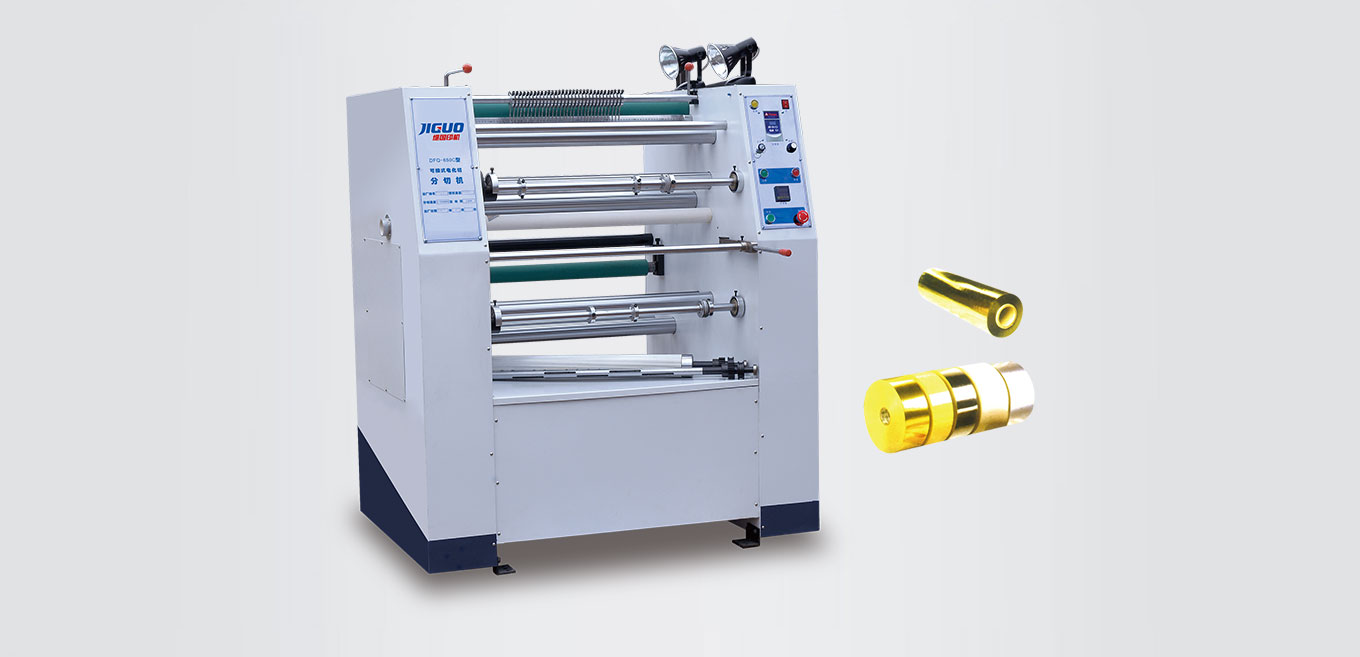

DFQ-650C

Foil Cutting Machine

DFQ-650C

Description


The precision of foil cut by this machine is high, which reduces the reserved width, with about 3-10mm saved per roll, which can consider ably reduce the cost. This equipment has advantages of rational design, easy operation, smoothness in roll turning over, no left and right dislocation, accurate cutting of front and back rod, samll coverage, single and double rolls with rectifying deviation, accurate meter-measured function for stop.
Stepless speed regulation and automatic cleaning are realized with the help of improted transducer. Therefore it is an ideal choice for the foil-cutting users.

Specifications


Core of Paper Roll25mm、80mm
Max. Roll Diameter400mm
Cutting Width15-650mm
Cutting Speed0~120m/min
Max. Delivery Roll Diameter500mm
Max. Delivery Roll Width650mm
Total Power2.2kw
Max. Numbers In the Counter9999
Rectification0~10mm
Total Weight1000kg
Overall Dimensions1300×1200×1570mm
Air Requirements(Buyer provide)0.5Mpa

Parts Description
