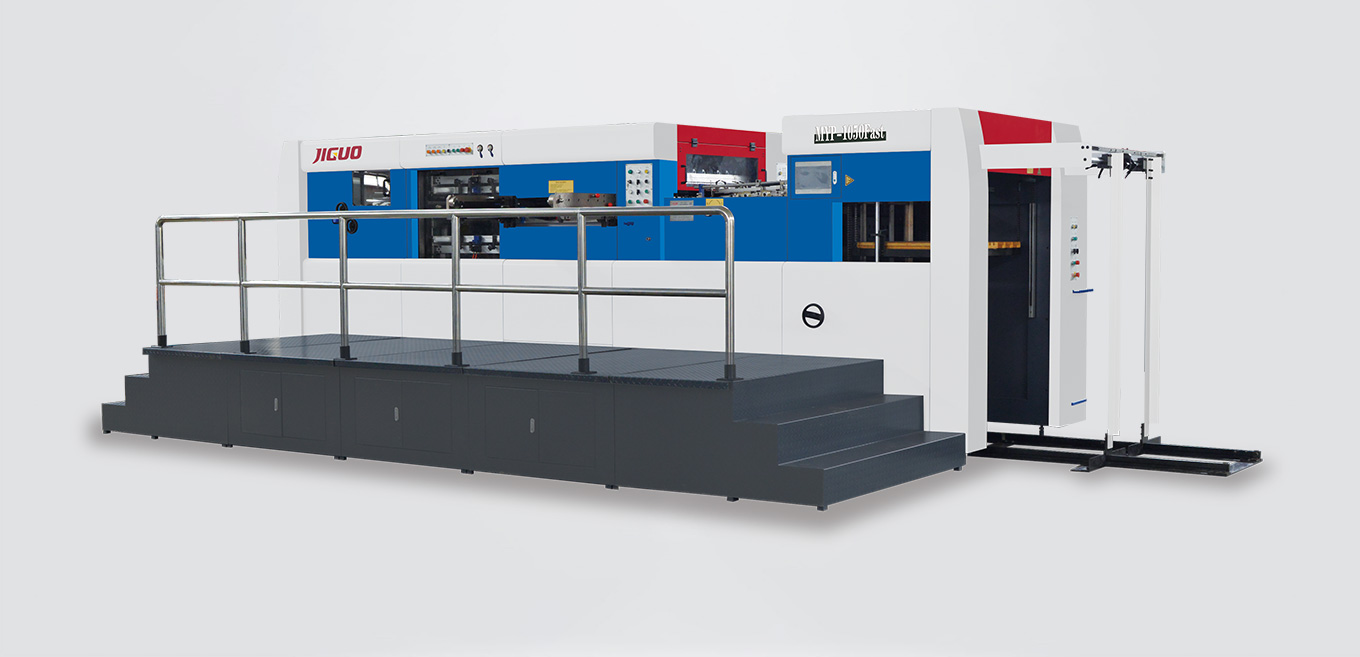

MYP-1050Fast
全自动清废模切Automatic Die-cutting & Stripping Machine (High Speed)
Description
The Fast series products belong to the high-speed series of machines,
and their excellent performance can reach a speed of 10000 sheets/hour,
which is faster, accurate, and stable than traditional die-cutting

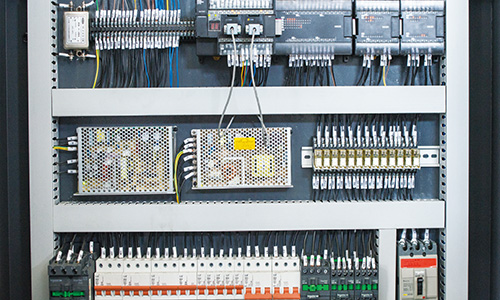

machines. Adopting a new electrical control system, German main chain,
Swedish bearings, all parts and materials are processed using imported
European machining centers. It ensures the performance and stability of
the machine at high operating speeds. This machine is equipped with a

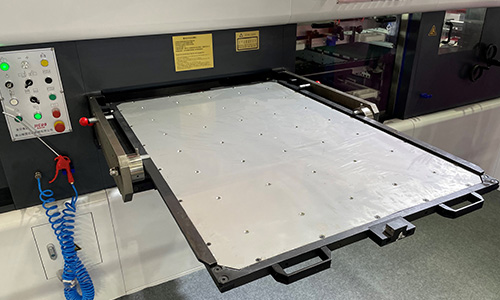

series of high-end features of the JIGUO brand: automatic locking plate,
automatic front lay adjustment, automatic non-stop auxiliary paper
receiving roller shutter, and special oil temperature refrigeration
technology to ensure the lubrication effect of the movement. Fully meet
the die-cutting needs of high-end customers. Suitable for various
high-end and exquisite gift box packaging products, such as wine boxes,
cigarette boxes, medicine boxes, cosmetics boxes, gift boxes, and so on.
Specifications
| Model | MYP-1050 Fast |
| Max. Paper Size | 1060×760mm |
| Min. Paper Size | 400×360mm |
| Max. Diecutting Size | 1040×740mm |
| Max. Cutting Speed | 10000s/h |
| Die-cutting Precision | ±0.1mm |
| Max. Pressure | 350T |
| Sheet Thickness | 0.1~4mm |
| Min. Gripper Edge | 7mm |
| Max. Feeding Pile Height | 1600mm |
| Max. Delivery Pile Height | 1400mm |
| Total Power | 21kw |
| Net Weight | 19T |

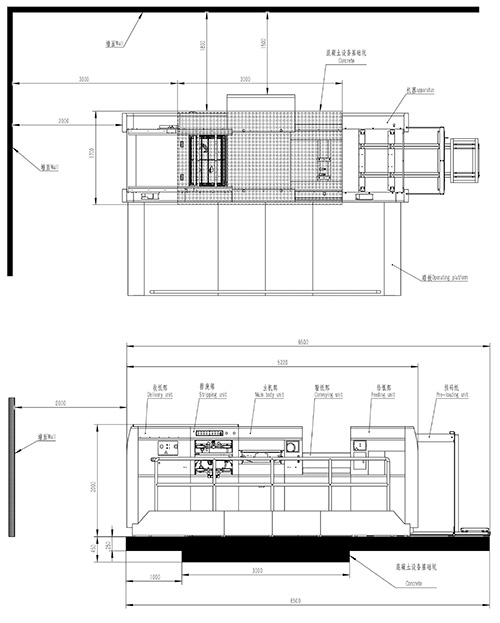

| Overall Dimension | 7570×4140×2360mm |
| Air Requirements(Buyer provide) | 0.8Mpa,>0.36m³/min |
